Question

How to find define inpreprocess and assembly

Answer

It looks like you're asking how to find #define directives during preprocessing and in assembly. Here's how to approach this in C/C++ compilation:


🔍 1. During Preprocessing

When you're interested in seeing how #define macros are expanded before compilation, you want to look at the preprocessed output.

âś… Use the -E flag with GCC/Clang:

bash
gcc -E your_file.c -o your_file.i
  • This will stop after the preprocessing stage, so you can see the result of all #defines, #includes, etc.
  • You can search through your_file.i for the expanded macros.

🔎 Example:

c
#define PI 3.14 float area = PI * r * r;

After preprocessing:

c
float area = 3.14 * r * r;

🛠️ 2. In Assembly

When you compile your code to assembly, all macros are already expanded. However, you can still generate assembly to inspect what happened.

âś… Use the -S flag with GCC/Clang:

bash
gcc -S your_file.c -o your_file.s
  • This produces the assembly code after compilation.
  • By this stage, all #defines are gone (replaced with their values), but you can see the resulting machine instructions.

🔎 Example:

If PI is used in math, you’ll see the numeric constant in the assembly (e.g., 3.14), but not the name PI.


đź§  Tip: Combine with Debug Info

To keep track of where macros were used:

bash
gcc -g -E your_file.c -o your_file.i

Or for tracing macro definitions and usage:

bash
gcc -dM -E your_file.c

This prints all macros defined (including predefined ones).


Would you like help analyzing a specific macro or code snippet?

Question


How to find this define in assembly and preprocess

Answer

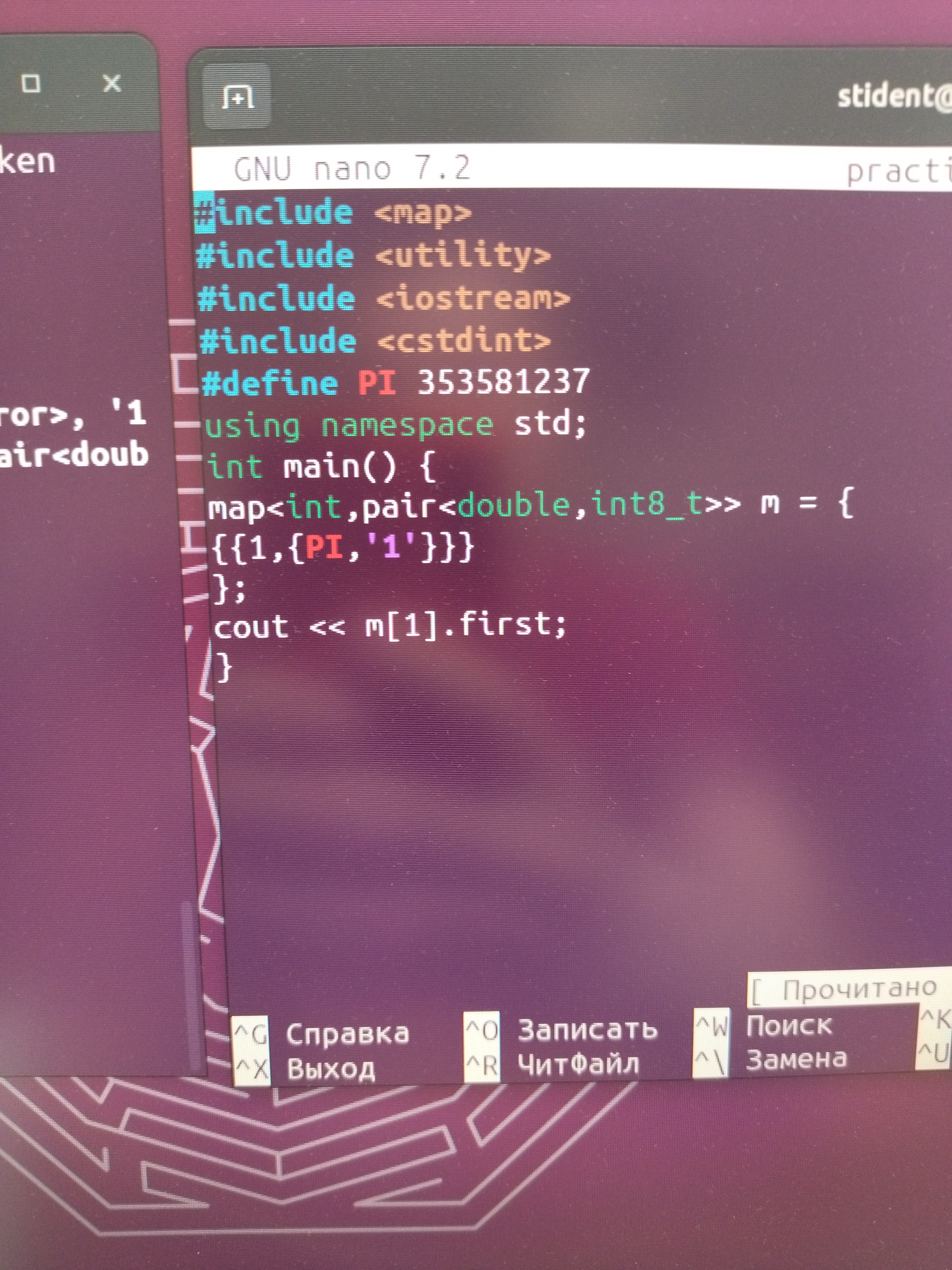

Great! From your image, you're working with this C++ code in nano, and you've defined a macro:

cpp
#define PI 353581237

Used in this line:

cpp
map<int,pair<double,int8_t>> m = {{1, {PI, '1'}}};

You want to see where PI is used in both:

  1. Preprocessed output
  2. Assembly

Here’s how to do it on your Linux terminal:


âś… 1. Preprocessing: See Macro Expansion

Run this in your terminal:

bash
g++ -E your_file.cpp -o out.i

Then open out.i in any editor or less:

bash
less out.i

Search for PI using /PI, and you’ll see it replaced with 353581237.

You can also list all macros with:

bash
g++ -dM -E your_file.cpp

That will show:

cpp
#define PI 353581237

🛠️ 2. Assembly: See the Translated Code

Now compile to assembly:

bash
g++ -S your_file.cpp -o out.s

Then open out.s:

bash
less out.s

Look for the number 353581237 — this is the constant that PI was replaced with during preprocessing, and it might appear in a mov instruction or constant pool (depending on optimization and how it’s used).


🔎 Bonus Tip: Combine Flags for Debugging

If you want to see both macro expansion and get more debug-friendly output:

bash
g++ -E -P your_file.cpp -o out_clean.i

The -P flag removes #line directives, making the file cleaner to read.


Would you like me to generate or simulate what the preprocessed or assembly file would look like for your code?

Question

I cant find my define in assembly

Answer

If you can’t find your #define PI 353581237 in the assembly, that’s actually expected behavior due to how the C++ preprocessor and compiler work.

Here’s why — and how to trace it:


🧠 Why You Don’t See PI in Assembly

  1. #define PI 353581237 is a macro, and it's replaced by the literal value (353581237) at preprocessing time.
  2. By the time the compiler emits assembly (.s file), there is no memory of the name PI — it's just a numeric literal.
  3. That number might not appear exactly as 353581237 in the .s file, depending on:
    • How it's used
    • Compiler optimizations
    • Whether it fits in a register or not

âś… How to Track It

1. Use -O0 to disable optimizations:

bash
g++ -S -O0 your_file.cpp -o out.s

Optimizations might fold constants, inline values, or remove unused code entirely.


2. Use grep to look for the value:

bash
grep 353 out.s

This helps you find:

asm
movl $353581237, %eax

Or something similar (in AT&T syntax).

If you're using Intel syntax (with -masm=intel), it might look like:

asm
mov eax, 353581237

3. Temporarily assign to a variable to force visibility:

To guarantee it ends up in assembly:

cpp
int a = PI;

Then build:

bash
g++ -S -O0 -o out.s your_file.cpp

And search again in out.s.


🔎 Optional: See Macro in Preprocessed Code

bash
g++ -E your_file.cpp -o out.i

Then search for PI or 353581237:

bash
grep 353 out.i

If you still don’t see it, paste or upload the .s file and I’ll help analyze where it might be hiding!
